SAP PP Module
DOCS FOR SAP Production PlanningCommands:
Production Planning in SAP ...Process Modeling:

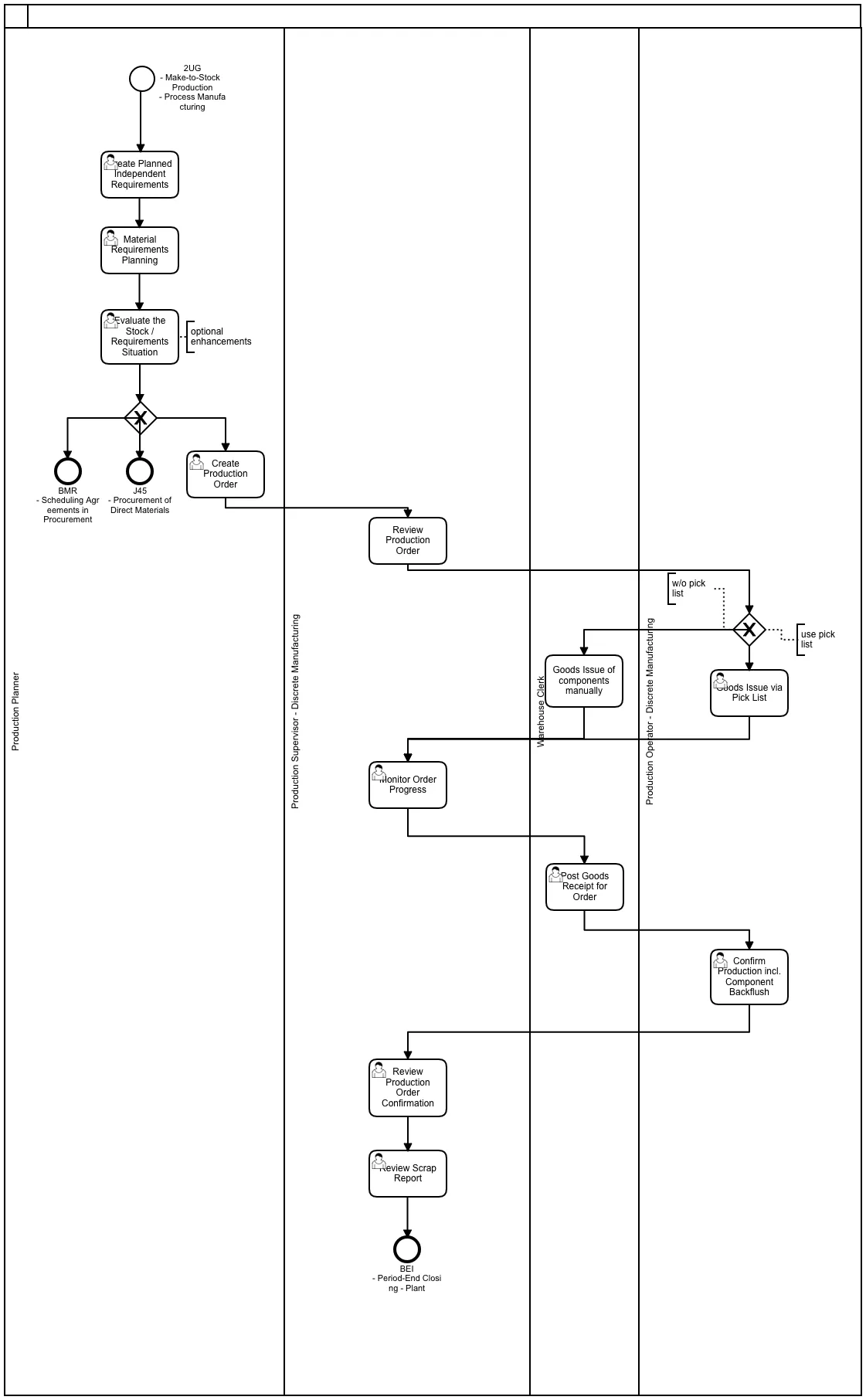

Section titled “Process Modeling:”Make to Stock based on Production Order:
Section titled “Make to Stock based on Production Order:”

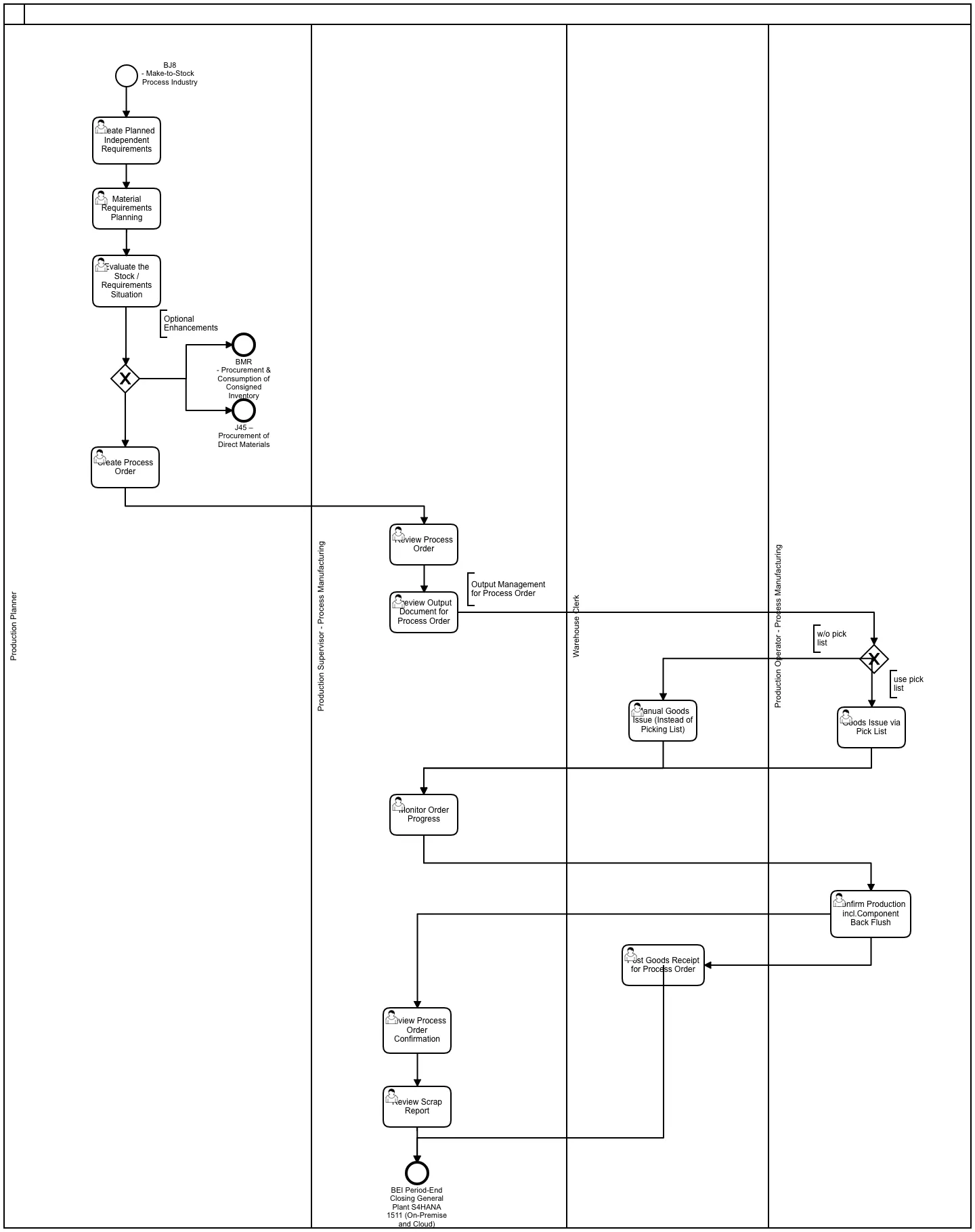

Make to Stock based on Process Order:
Section titled “Make to Stock based on Process Order:”

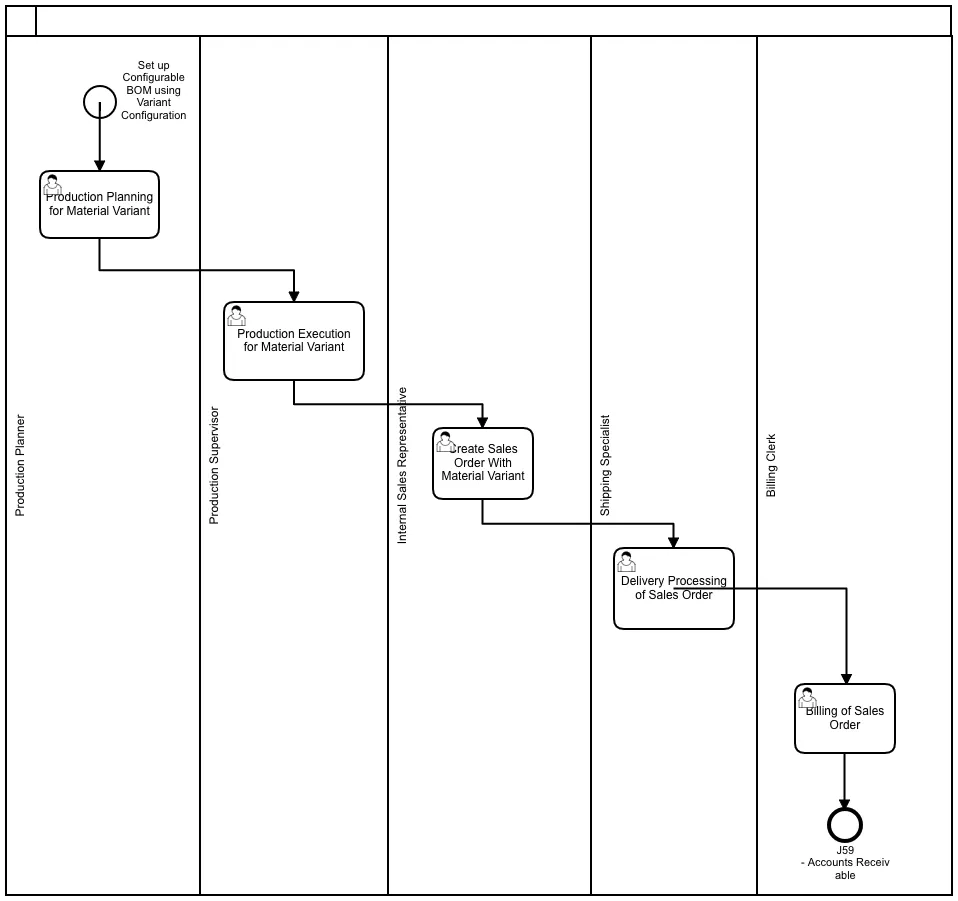

Make to Stock based on Variant Configuration:
Section titled “Make to Stock based on Variant Configuration:”

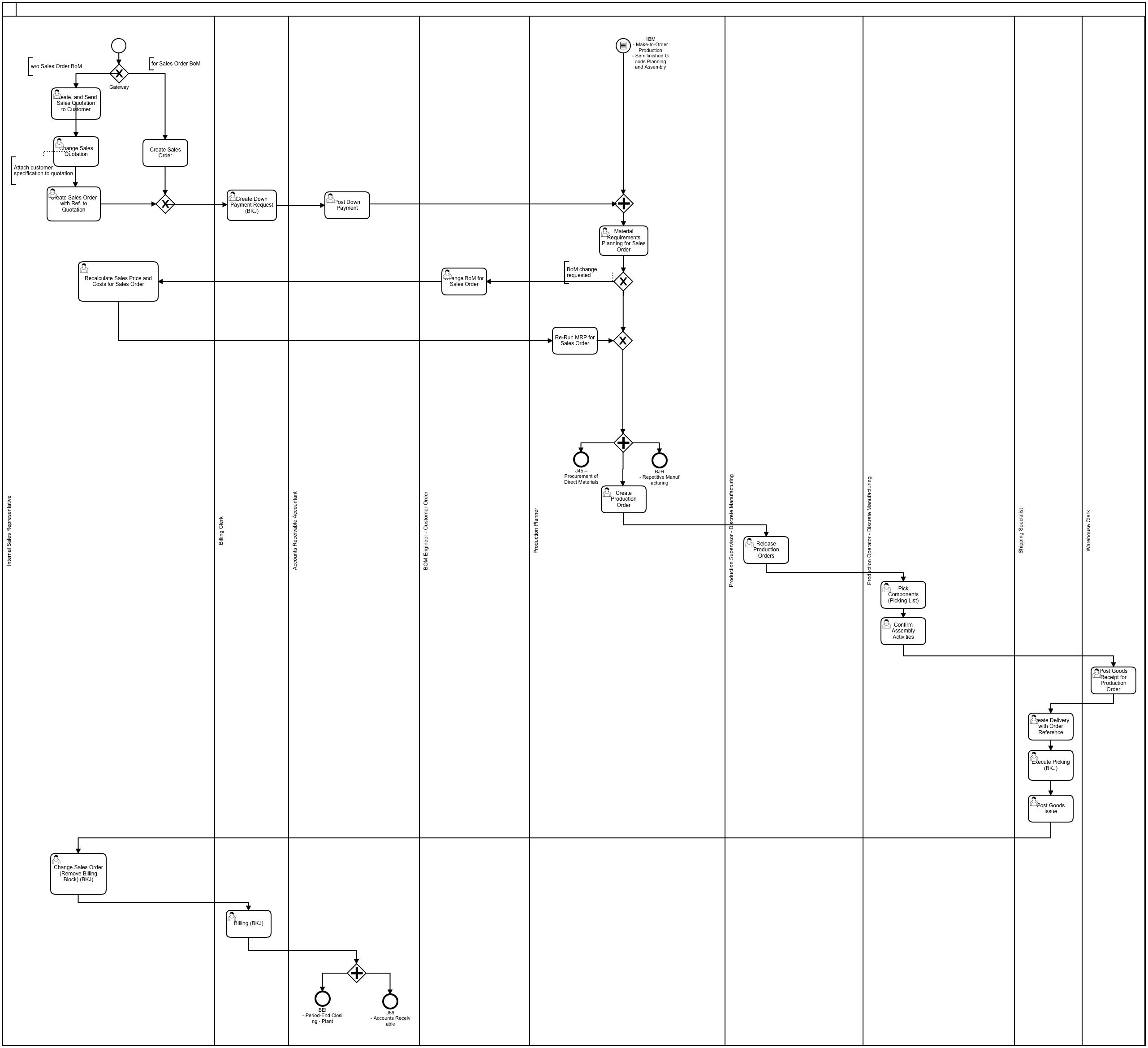

Make to Order - Finished Goods Sales & Final Assembly:
Section titled “Make to Order - Finished Goods Sales & Final Assembly:”
Make to Order - Semi-Finished Goods Planning & Assembly:
Section titled “Make to Order - Semi-Finished Goods Planning & Assembly:”Tables:
Section titled “Tables:”| Table | Name | S/4HANA - Notes |
|---|---|---|
| CRCA | Work Center Capacity Allocation | In Logical Database CRC. |
| CRCO | Assignment of Work Center to Cost Center | |
| CRHD | Work Center Header | |
| CRHH | Hierarchy Header Data | |
| CRHS | Hierarchy Structure | |
| CRTX | Text for the Work Center or Production Resource/Tool | |
| KAKO | Capacity Header Segment | |
| TC24 | Person responsible for the work center | |
| MAPL | Assignment of Task Lists to Materials | In Logical Database PNM PNM_OLD. |
| PLAS | Task list - selection of operations/activities | |
| PLFH | Task list - production resources/tools | |
| PLFL | Task list - sequences | |
| PLKO | Task list - header | |
| PLKZ | Task list: main header | |
| PLMZ | Allocation of bill of material items to operations | |
| PLPH | CAPP: Sub-operations | |
| PLPO | Task list - operation/activity | |
| PLPR | Log collector for task lists | |
| KDST | Sales Order to BOM Link | In Logical Database CSR. |
| MAST | Material to BOM Link | In Logical Database CKA CSR. |
| PLMZ | Allocation of bill of material items to operations | |
| STAS | BOMs - Item Selection | In Logical Database CSR. |
| STKO | BOM Header | In Logical Database CSR. |
| STPN | BOM Follow-Up Control | In Logical Database CSR. |
| STPO | BOM item | In Logical Database CSR. |
| STPU | BOM Subitem | In Logical Database CSR. |
| STZU | Permanent BOM data | In Logical Database CSR. |
| AFFH | PRT assignment data for the work order | In Logical Database POH. |
| AFKO | Order Header Data PP Orders | In Logical Database ODK PSJ. |
| AFPO | Order item | In Logical Database ODC ODK OFC OHC OPC POH PSJ. |
| AFRU | Order Confirmations | In Logical Database ODC OFC OHC OPC POH. |
| AFVC | Operation within an order | In Logical Database BTM. |
| AFVU | DB structure of the user fields of the operation | |
| AFVV | DB structure of the quantities/dates/values in the operation | |
| AUFK | Order master data | In Logical Database ODK PSJ. |
| AUFM | Goods movements for order | |
| CAUFV | View Order Headers PP/CO | In Logical Database BTM POH. |
| JSTO | Status object information | In Logical Database ODK PSJ. |
| RESB | Reservation/dependent requirements | In Logical Database BBM ERM MEPOLDB MMIMRKPFRESB ODC OFC OHC OPC POH RMM RNM. |
| PLAF | Planned Order | In Logical Database DPM PSJ. |
| PKER | Error Log of the Kanban Containers | |
| PKHD | Control Cycle | |
| PKPS | Control Cycle Item / Kanban | |
| RESB | Reservation/dependent requirements | In Logical Database BBM ERM MEPOLDB MMIMRKPFRESB ODC OFC OHC OPC POH RMM RNM. |
| RKPF | Document Header: Reservation | In Logical Database MMIMRKPFRESB RKM RNM. |
| KBED | Capacity Requirements Records | In Logical Database ODC OFC OHC OPC POH. |
| KBEZ | Add. data for table KBED (for indiv. capacities/splits) | In Logical Database PSJ. |
| KBKO | Header Record for Capacity Requirements | |
| PBED | Independent Requirements Data | |
| PBHI | Independent Requirements History | |
| PBIC | Ind. reqmts index for customer requirements (without RV) | |
| PBIM | Independent Requirements for Material | |
| PBIV | Ind. reqmts index for consump. of exter. non-variable parts | |
| MAKT | Material Descriptions | Field ‘Mat. desc - MAKTG’ for the search. Logical Database MMIMRKPFRESB S1L S2L. |
| MAPL | Assignment of Task Lists to Materials | In Logical Database PNM PNM_OLD. |
| MARA | General Material Data | In Logical Database /SAPSLL/CUSMSM BAM BKM BMM CKM EBM ECM ENM ESM IFM S1L WTY. |
| MARC | Plant Data for Material | S/4: Master data without stock aggregates. In Logical Database /SAPSLL/CUSMSM S1L. |
| MARD | Storage Location Data for Material | S/4: Master data without stock aggregates. In Logical Database /SAPSLL/CUSMSM MSM. |
| MAST | Material to BOM Link | In Logical Database CKA CSR. |
| T001K | Valuation area | |
| T001L | Storage Locations | |
| T001W | Plants/Branches | |
| T499S | Location | |
| TSPA | Organizational Unit: Sales Divisions | |
| T003O | Order Types | |
| TCX00 | Scheduling: Planning Levels and Control Parameters | |
| ------- | ------ | ----------------- |
Programs, Function Modules and Exits:
Section titled “Programs, Function Modules and Exits:”Platforms:
Section titled “Platforms:”| ECC | S/4 HANA | U/X | Database |
|---|---|---|---|
| SAP ERP | SAP S/4 HANA | SAP FIORI | SAP HANA |
| -------------- | -------------- | --------------- | --------------- |
Note: S/4 (cloud & on-premise) works only on Hana DB while SAP ERP is compatible with Hana DB, MS Sql, Oracle DB, IBM DB2 etc.
